Higher injection pressure, higher atomization rate, and more sufficient in combustion;
Reinforcement design on motion friction pair, structure components and other pieces, explosion pressure is high;
Initially use four-valve technology at home, with high inlet and exhaust efficiency;

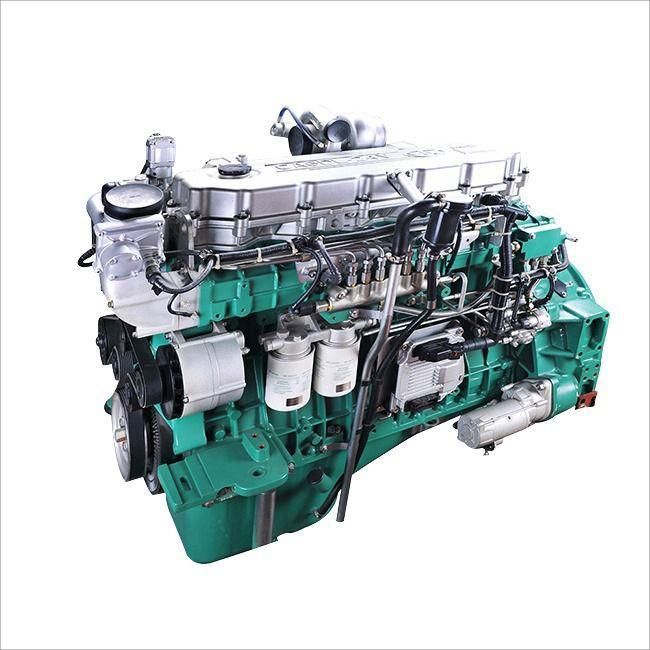

Model | CA6DL1-26E3 | CA6DL1-28E3 | CA6DL1-29E3 | CA6DL1-30E3 | CA6DL1-31E3 | CA6DL1-32E3 |
Type | 6-cylinder in-line, direct injection, turbocharged&intercooling, common rail | |||||
Bore×Stroke (mm) | 110 × 135 | |||||
Valves/cylinder | 4 | |||||
Displacement (L) | 7.7 | |||||
Rated power (kW) | 195 | 209 | 216 | 231 | 231 | 231 |
Net power/speed (kW/r/min) | 192 | 206 | 213 | 220 | 228 | 228 |
Rated speed (r/min) | 2300 | |||||
Maximum torque (Nm) | 1050 | 1100 | 1150 | 1150 | 1200 | 1250 |
Maximum torque speed (r/min) | 1300~1700 | |||||
Fuel consumption (g/kW·h) | 192 | |||||
Noise dB (A) | ≤ 95.5 | |||||
Technical Route | common rail | |||||
Emission Compliant (TAS) | EURO Ⅲ | |||||
Net Mass (kg) | 820 | |||||
Length×Width×Height (mm) | 1285×820×1050 |
Model | CA6DL1-26E3U | CA6DL1-28E3U | CA6DL1-32E3U | CA6DL1-26E3F | CA6DL1-28E3F | CA6DL1-31E3F |
Type | 6-cylinder in-line, direct injection, turbocharged&intercooling, electronic unit pump | 6-cylinder in-line, direct injection, turbocharged&intercooling, inline pump+EGR | ||||
Bore×Stroke (mm) | 110 × 135 | |||||
Valves/cylinder | 4 | |||||
Displacement (L) | 7.7 | |||||
Rated power (kW) | 195 | 209 | 231 | 195 | 209 | 231 |
Net power (kW/) | 192 | 206 | 228 | 192 | 206 | 228 |
Rated speed (r/min) | 2300 | |||||
Maximum torque (Nm) | 1000 | 1100 | 1250 | 1000 | 1100 | 1100 |
Maximum torque speed (r/min) | 1300~1700 | 1400 | ||||
Fuel consumption (g/kW·h) | 194 | 196 | ||||
Noise dB (A) | ≤ 95.5 | |||||
Technical Route | electronic unit pump | inline pump +EGR | ||||
Emission Compliant (TAS) | EURO Ⅲ | |||||
Net Mass (kg) | 820 | |||||
Length×Width×Height (mm) | 1285×820×1050 |
Fuel Efficient:
Higher injection pressure, higher atomization rate, and more sufficient in combustion;
Reinforcement design on motion friction pair, structure components and other pieces, explosion pressure is high;
Initially use four-valve technology at home, with high inlet and exhaust efficiency;
Optional integrate VCU device (polymorphic switch and etc.) that is researched and developed independently, and oil supply can be adjusted according to vehicle load;
Reliable:
Adopt electric-controlled common rail system that is widely used in the world, with mature technology;
Use inter Euro first-class brand products for the key spare parts such as piston, piston ring, crank, bearing bush and high strength bolt;
Products have passed through German TUV inter Euro certification;
Whole set B10 life span is 800, 000 km.
Comfortable:
Adopt Holland LMS vibration test system to make vibration testing optimization on the whole set, providing NVH support optimization for forming a complete set, with small vibration and low noise;
Adopt helical gear transmission to improve transmission stability and reduce mechanical noise;
Adopt ladder frame to increase structure rigidity of the whole set and reduce vibration;
Optional cruise function, reduce driving strength;
Precise dynamic calibration makes the whole vehicle smooth in shifting;
Optional fuel level switch, automatically remind of drain through primary filter.
Safe:
Optional engine braking technology, with great braking power, and it is safer for going downward along a slope with heavy load;
It is optional to install OBD fault detection for real-time fault alert.
Environment-friendly:
Pass through European Union Emission Certification;
Adopt patent technology of four-valve, double-intake passage, with slight smoke;
Emission margin is large, with emission upgrade potential.
Optimization of whole set:
Adopt Austria AVL vehicle power transmission system simulation software to calculate, analyze & compare, test and evaluate for the whole vehicle matching, and the whole vehicle has powerful matching and better economical efficiency;
Personal Design:
Optional GPS system, with vehicle management, real-time control, vehicle security, remote diagnosis and other functions;
Optional PTO device, to meet the need of special vehicle use;
Optional remote throttle, speed limits, deputy shutdown, CAN instrument and other functions.
